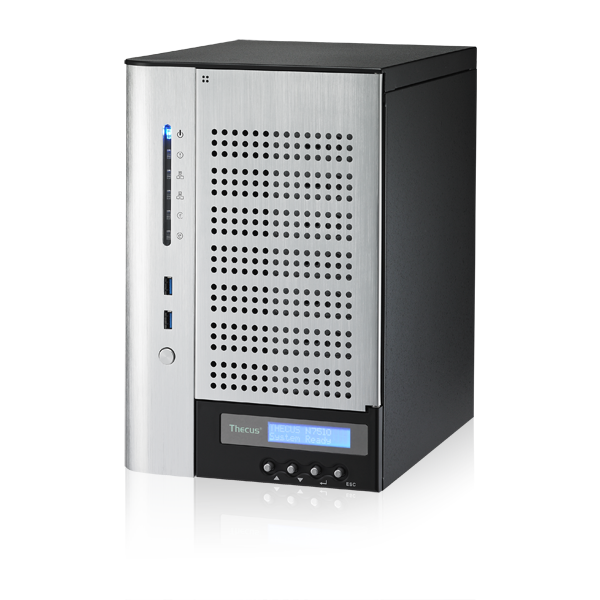

N7510 The World's 1st High-Value 7-bay NAS
  • Intel® Atom™ Processor
  • HDMI Output
  • Increased Performance
  • McAfee® Antivirus Protection
  • Data Burn
  • Data Guard
  • Rock-Solid Security
  • Featuring SuperSpeed USB 3.0
  • Running on ThecusOS™ 5.0
  • 2 LAN with Link Aggregation Support
  • Fanless Motherboard & System Fan Redundancy
  • VMware®, Citrix®, Microsoft® Hyper-V® Compliance


Awards/Reviews

2014-07-30
Media: LanOC Reviews | Country: USA

With a price hard to beat and a treasure chest of resources, the N7510 is a gamer’s gem. “If you are on the market for a NAS, you should really consider jumping up to the N7510 and giving yourself the expandability in the future, you know you will need it!”

2014-05-19
Media: C.O.D. | Country: USA

After putting the N7510 to the test, C.O.D concluded by saying, “This NAS is very inexpensive and performs as well as those that cost twice as much.”

2014-05-12
Media: Legion Hardware | Country: Australia

“In terms of value the N7510 is hard to beat and in fact if you are after maximum storage on a budget we feel it can’t be beaten.”

2014-04-28
Media: ServeTheHome | Country: USA
“… the Thecus N7510 has high quality internal components, and solid performance all at a price lower than many 5-bay competitors. That makes it a solid value.”
2013-07-29
Media: News And Reviews | Country: UK

"From the high-end enthusiast who loves their NAS with style right through to the Small to medium business that demands top performance/security features with an easy on the wallet price tag."

Features

  • Data Guard
    Data Guard backup solution is the ultimate software as it provides both local and remote parts. Currently, data is backed up across RAID volumes, external USB drives, and eSATA. In addition, Data Guard uses innovative technology to sync data across the network to other NAS and servers. More importantly, Thecus® Data Guard is the total backup solution which makes managing NAS user-friendly and convenient.
  • Data Burn
    NAS data can now be burned directly to CD, DVD, and Blu-ray discs with Data Burn, this hassle-free module makes burning data to a disk effortless. In addition, burning ISO image file is also supported. Whether you’re managing audio, media or essential files; Data Burn copies information fast while significantly reducing waiting time. The process of burning file to disk is now easy and smooth with Data Burn module.
  • Link Aggregation
    Link aggregation can sustain multiple network connections and provide redundancy in case one of the links fails. Thecus NAS supports 7 modes which provide Load Balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, and Balance-ALB, Broadcast.
  • Antivirus
    Thecus’ innovative hardware helps prevent failures. But sometimes you have to protect the NAS against itself. Adding an antivirus to the already comprehensive software bundle will provide the necessary software protection by scanning the files on your NAS and defending it against possible threats. McAfee is the world’s largest dedicated security technology company and shares Thecus’ spirit of dedication and quality. By establishing a strong partnership with them, Thecus will allow users the benefit of McAfee’s powerful software on their NAS entirely for free.
  • Cloud Backup
    The private and public clouds meet with Thecus’ new DropBox, Amazon S3 and ElephantDrive cloud backup functionality! Guard your data with RAID at home and an additional level of protection in the Cloud. Just drag and drop files into the folder on your NAS and access them on any computer or mobile device with DropBox, Amazon S3 or ElephantDrive.
  • HDMI Output
    Make your NAS into the ultimate multimedia hub! The N7510’s HDMI output allows you to connect your NAS directly to your TV for device management.

  • USB 3.0 Connectivity
    The next generation of connectivity is here with speeds 10x faster than USB 2.0. Whether connecting digital cameras and smart phones, backing up large external hard drives, or extending the capacity of your NAS, USB 3.0 will make sure it's done in no time at up to 5 Gbit/s. Backwards compatibility adds the connectivity of a world full of USB 2.0 and USB 1.1 devices to get the best combination of speed and universal access.
  • Acronis True Image
    Thecus brings the best to the table with Acronis’s advanced backup software. Back up all your data with One-click Protection or pick and choose only your most important files. Acronis sports a slick interface, user-friendly design, and comprehensive features to keep your data safe.
  • Multiple RAID
    When it comes to data management, Thecus NAS truly let you have it your way. Create multiple RAID volumes each supporting different RAID modes including RAID 0, 1, 5, 6, 10, 50 and JBOD for your own balance of performance and data protection. Should a hard drive malfunction occur, changing one is simple thanks to online RAID migration and expansion, hot spare, and auto rebuild.
  • Multiple File Systems
    Support for multiple file systems including EXT3, EXT4, and XFS, gives Thecus NAS flexibility to handle many different types of environments. Users can simultaneously use different file systems across multiple RAID volumes to get the best of each one.

  • iSCSI Thin-Provisioning
    Get the most out of your storage space with the extreme speed of iSCSI and the efficiency of iSCSI thin provisioning. Connect through iSCSI for the fastest data transfer speeds available and make wasted disk space a thing of the past with thin provisioning's flexible storage functionality.
  • iOS/Android Connectivity
    In the modern world, nothing is as important as reaching your data from anywhere. With T-OnTheGo and the T-Dashboard, you can manage your NAS, and upload to and download/stream from your NAS using an iOS or Android device on the go.
  • Rsync
    Backing up your data is very necessary, and everyone has specific needs when it comes to storage. Thecus’s Rsync functionality gives users great flexibility with remote backup capability, a flexible scheduler, and the stability of Linux-based transfer.
  • User Quota
    Divide the massive storage of a Thecus NAS among multiple users. Whether there are two users or 100, User Quota make it easy to divvy up and manage disk space.

Overview

Great news NAS lovers, a new high-value 7-bay NAS is now available on the market! Thecus® put their hands together and added a new tower to the Vision series. Equipped with an Intel® Atom™ processor, 2GB of DDR3 RAM, HDMI output and offering incomparable data protection with the McAfee antivirus, this NAS will offer lots of power and lots of storage capacity without spending lots of money. With the 2-bay N2800, 4-bay N4800 and N4510U and the 5-bay N5550, the 7-bay N7510 completes the Vision series of Intel® Atom™ NAS from Thecus®.

N7510

- HDMI Output
- Increased Performance
- McAfee® Antivirus Protection
- Data Burn
- Rock-Solid Security
- Featuring SuperSpeed USB 3.0
- Running on ThecusOS™ 5.0
- 2 LAN with Link Aggregation Support
- Fanless Motherboard & System Fan Redundancy
- VMware®, Citrix®, Microsoft® Hyper-V® Compliance

Intel® Atom™ CPU: silent power and energy saving

As it is already been prove with the N5550 and N4800, the Intel® Atom™ CPU performs like a real Olympian athlete! As they are more energy efficient and are design to work without a fan, their energy consumption and associated cost are greatly reduced for the benefits of the user. This will dramatically reduce NAS noise and power consumption, making it a bit more ecofriendly.

With the Intel® Atom™ processor, multi-tasking is something you won’t have to worry about. Multi-users environment (+64), web hosting, intense backup, data encryption, application serving, heavy RAID computations (mode 0, 1, 5, 6, 10, 50, JBOD and up to3 multiple RAID mode supported), and HD multimedia streaming, this processor can take it!

Free threat protection with McAfee antivirus

As of early 2012, Thecus® embeds their NAS with the added protection offered by the antivirus McAfee. As your NAS can serve many clients, threat can come for anywhere. Scheduling McAfee to scan your vital data will give you the peace of mind you deserve! The powerful antivirus McAfee will browse through all your files, big or small, in a flash and assure that everything is secured!

ThecusOS™ 5.0

The N7510 will have the newly ThecusOS™ 5.0 preinstalled. The new ThecusOS™ 5.0 is the key piece that will unlock the most efficient and advanced NAS on the market. This means that users will be able to access more innovative functions with their Thecus® NAS. Two of these functions are Data Burn and Data Guard. With Data Burn, the users have the possibility to back-up their critical data by burning them onto a CD, DVD or Blu-ray disk. By plugging a disk burner to their NAS thru the available USB ports and managing the burning process.

But your back-up options don’t stop there. Also included in the new ThecusOS™ 5.0 is the total backup solution, Data Guard. This backup solution is the ultimate software as it provides both local and remote backup. Currently, data is backed up across RAID volumes, external USB drives, and eSATA. In addition, Data Guard uses innovative technology to sync data across the network to other NAS and servers. More importantly, Thecus® Data Guard is the total backup solution which makes managing NAS user-friendly and convenient.

Additionally, Thecus® users will also be able to take advantage of the cloud for their back-up solution. With support of the Amazon S3 cloud back-up services, the users will have one more option to keep their data safe and away from harm!

Multimedia playback and direct NAS access with HDMI

Handling multimedia and accessing your NAS has become a much more direct and simple process! With the HDMI output located in the back of the N7510, you can directly connect to an HD TV screen and start monitoring your NAS without the use of a computer. Using the local display module, a keyboard and a mouse plugged through the many USB ports, the user has the power to simply access the NAS UI, play HD video, display pictures or listen to their music, all of this with the display comfort of a big TV screen. Ideal for small installations and/or mobile users, these features are designed to lower the total cost of ownership of your network architecture.

Specifications: N7510 for High Value Storage

- Intel® Atom™ Processor
- 2GB of DDR3
- SATAII/III interface
- USB 3.0 x2
- LCM Display
- eSATA port
- 7-bay 3.5”/2.5” HDD compatible
- HDMI output
- RAID O, 1, 5, 6, 10, 50, JBOD (up to 3 multiple RAID modes)
- McAfee antivirus protection

“Powered by an Intel® Atom processor, the N7510 has the highest value for a 7-Bay NAS on the market today” said Florence Shih, Thecus® Technology General Manager. “Let’s just say that if there was an Olympic for NAS, the N7510 would most certainly come back with gold”

Specs

1. Hardware Platform
Item Spec
Processor Intel® Atom™ Processor (2.13GHz Dual Core)
System Memory 2GB DDR3

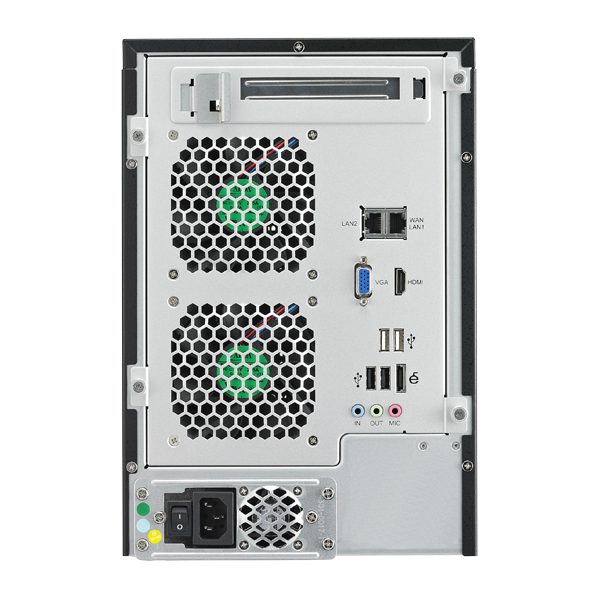

LAN Interface (PCI-e) RJ-45x2: 10/100/1000 BASE-TX Auto MDI/MDI-X
WOL supported
USB Interface USB 2.0 host port x4 (back x4)
USB 3.0 host port x2 (front x2)
LCM Module LCM display
4 buttons (ENTER, ESC, UP, DOWN)
SATA DOM 1GB
HDMI Output HDMI port (back x1)
VGA Output VGA port (back x1)
Audio MIC input, Line input, Audio output
Disk Interface 7 x SATA for internal
1 x eSATA for external
Power Supply 300W Power Supply
Thermal/Fan control Thermal sensor on processor temperature
System FAN speed controlled by temperature
System Clock Battery-backed up system clock
Power Management Auto power on after shutdown due to power loss
Buzzer Adjustable frequency alarm
Buttons Power button
LCM button
Environment Temperature: 5°C to 40°C
Humidity: 0 ~ 80 % R.H. (Non-condensing)
Chassis Tower Metal Chassis
Dimensions (HxWxD) 320 x 210 x 270 (mm)/ 12.59 x8.27 x 10.62 (in)
Weight 8.4(kgs)/18.51(lb)(NAS only)
Certificates CE/FCC/C-Tick/VCCI/BSMI
RoHS
WEEE
VMware, Citrix

2. Software Functions
RAID
RAID Modes RAID 0, 1, 5, 6, 10, 50 and JBOD
Auto-rebuild Supported
Hot-swap Supported
Hot Spare Supported
Online RAID Migration Supported
Online RAID Expansion Supported
RAID Volume Encryption AES256bit
Disk
Power Management Available spin-down on idle setting
Bad Block Scanning Supported
SMART Info Supported
SMART Test Supported
Disk Roaming Supports volume-based roaming to other Thecus NAS
Network
Configuration Fixed IP address, dynamic IP address
Transport Protocols TCP/IP/AppleTalk
File Protocols SMB/CIFS, HTTP/HTTPS, FTP, NFS v4, AFP
Link Aggregation Load balance, Failover, 802.3ad, Balance-XOR, Balance-TLB, Balance-ALB
TCP/IP IPV6 & IPV4
DDNS Supported
SSH Supported
UPnP Supported
UPnP Port forwarding Supported
System status
System Monitor Monitoring CPU, memory, temperature, fan, network utilization and protocols access user count
Syslog Management Send syslog to assigned location
Act as syslog server to receive log info from other systems
Data Access
Client OS Support Windows XP and after
Windows Server 2003 and after
UNIX/Linux
Mac OS X
FTP Built-in FTP server with bandwidth control
Secure FTP Built-in secure FTP server with bandwidth control
TFTP Users can download and upload files with TFTP programs
Download Manager BT download (via Transmission module)
NZB download (via NZB module)
Printer Server (IPP) Supports USB printers
Supports a wide range of IPP printers
Client can manage print tasks  (list/delete) via web user interface
Data Backup
Client Incremental Data Backup Acronis True Image (OEM version)
Client System Disaster Recovery Acronis True Image (OEM version)
Client Side Backup Software Thecus Backup Utility (Windows/Mac OS X)
Data Burn Create files to ISO image and burn to optical disc
Create files to ISO image
Read ISO image from optical disc and write to NAS
Mac OS X Time Machine Supported
Data Guard Remote Backup/Local Backup
Block Level Access
iSCSI Target/Initiator Supports Microsoft/Mac OS X/Linux initiators and Thecus NAS targets
iSCSI Thin Provisioning Supported
MPIO Supported
MCS Supported
Clustering Supported
SCSI3 Persistent Group Reservation Supported
Power Management
Scheduled Power On/Off Supported
Volume Management
Multiple RAID Supported
Multiple File System Selectable EXT3/EXT4/XFS
Multimedia Support
iTunes Server Supports AAC, MP3 w/ID3 tag and WAV
Piczza!™ Photo Server (via module) Supports GIF, JPG (JPEG), BMP and PNG
Supports EXIF display
Supports slide shows
Media Server Supports uPnP AV streaming protocol
User Authentication
Local User Supports built-in user accounts
Local Group Supports built-in user groups
Windows ADS Supported
LDAP Supported
Access Guard Supports Black & White list/IP Filter
Cloud Backup
DropBox Supported (via module)
ElephantDriver Supported (via module)
Amazon S3 Supported
File System
Type Journaling File System
Language Support Unicode Support
Authorization (ACL) “Read”, “write”, or “deny” privileges to individual users or groups in folders and sub-folders
User Quota Supported
Administration
User Interface Web-based user interface supports English, Traditional Chinese, Simplified Chinese, Japanese, Korean, French, German, Italian, Spanish, Russian, Polish, Portuguese, Turkish and Czech.
Utility Program MS Windows Setup Wizard
Supports Windows 8/7/Vista/2003/XP/2000
Mac OS X Setup Wizard
Email Notifications Sends system messages via email to the system administrator
SNMP Trap System information trap out
Mobile Applications (iOS/Android)
T- Dashboard Mobile monitoring and administration (via module)
T-OnTheGo™ Upload, download and stream multimedia
Data Security
Virus Scan Supports McAfee® (via module)
Capacity Expansion
Stackable Can extend for 5 additional iSCSI volumes from other Thecus NAS
Others
Recycle Bin Supported
Web Disk Supported (via module)
Web Server Supported (via module)
ISO Mount Supported
IP Cam Surveillance Supports up to 5 IP cameras (via module)
Auto Module Installation Thecus’ module server automatically provides the latest modules and updates through the user interface.
Local Display X-Window via HDMI output

Package Contents

Accessory Bag(with key) Ethernet Cable Power Cord Acronis True Image DVD
Universal CD QIG Warranty Card HDD Compatibility List Card
