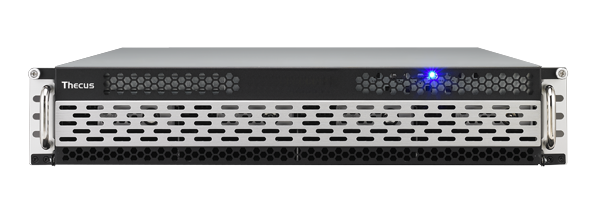

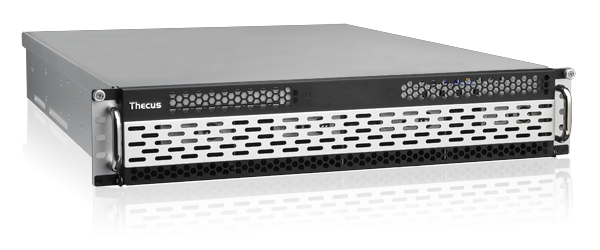

W8900 The Definitive Windows Storage Server
  • Intel® Core™ i3-2120 3.30GHz Processor
  • Ultra-Fast SATA III and SAS 6G
  • HDMI Connectivity
  • Single-Instance Storage (Dedup)
  • No Windows Server CALs Required

    *The MS license needs to be purchased separately


Features

  • Single-Instance Storage (Dedup)
    When data is sent to multiple users, single-instance storage allocates data to be stored once, eliminating the need to duplicate data storage. This results to reduced data storage and improved data backups. Single-instance storage is most functional when transferring data to large distribution directories by improved delivery efficiency.
  • No Windows Server CALs Required
    No CALs required benefits users the ability to access the services of the server without a permit. With this, business users will not have to go through the trouble of obtaining authorization of per-user or per-device. With no CALs required, users are able to access data on demand, without the troubles of CALs.
  • PCI-e Gen2
    The evolved PCI-e Gen2 offers innovative technology that saves cost with an efficient narrow configuration. While doubling the transfer rate of the previous PCI-e, the PCI-e Gen2 provides the same bandwidth as the PCI-e but with only half its lanes. The target is to save on cost and provide an improved PCI-e for users. The Gen2 provides a significant improvement on system performance over the PCI-e; users can now enjoy faster transfer speeds and connectivity.
  • HDMI Output
    Make your NAS into the ultimate multimedia hub! The W8900’s HDMI output allows you to connect your NAS directly to your TV for device management.

  • 10GbE Ready
    High-end data centers often need a level of speed that today’s average Internet cannot provide. This Thecus NAS is 10Gb Ethernet ready to satisfy the toughest needs of today and tomorrow.

  • USB 3.0 Connectivity
    The next generation of connectivity is here with speeds 10x faster than USB 2.0. Whether connecting digital cameras and smart phones, backing up large external hard drives, or extending the capacity of your NAS, USB 3.0 will make sure it's done in no time at up to 5 Gbit/s. Backwards compatibility adds the connectivity of a world full of USB 2.0 and USB 1.1 devices to get the best combination of speed and universal access.

Overview

Thecus has received hundreds of awards during its history for its innovative and reliable hardware, helping countless people all over the world to share our new digital-era treasure: data. Thecus believes in diversity. That’s why they are releasing a new Windows Storage Server-powered NAS product line to help you share your files using Windows Storage Server 2012: the W Series. Three models will be available: 8-bay W8900, 12-bay W12000 and 16-bay W16000.

“The release of the W Series is the start of a very fruitful relationship with Microsoft that will help us achieve our main goal: to satisfy more and more Thecus users with high-quality network appliances,” says Florence Shih, General Manager of Thecus Technology.

Explore the reliable and powerful Thecus NAS appliance powered by Window Storage Server 2012. This appliance offers new tools to manage and fulfill business needs. The appliance provides a network platform that allows users to access computers that are running Windows Server 2012. With the latest Windows Storage Server Service Pack 1 (SP1), RemoteFX and Dynamic Memory are two additions that increase user flexibility and control.

We are pleased to see Thecus utilizing Microsoft Windows Storage Server 2012 to deliver a cost effective, reliable, and scalable solution,” said Thomas Pfenning, General Manager, File Server Foundation, at Microsoft. “This will help customers address challenges of managing and providing access to the growing amount of data that businesses rely on.”

Besides easy integration within a Microsoft infrastructure and finer optimization for Windows transfer protocols, users who are familiar with Windows Server will now have more familiar interface for managing and protecting their essential business data. In addition, Microsoft updates its product to maintain the security level of its appliances. And finally, the whole Windows ecosystem and community are available to help. Enabling functions such as replication, anti-virus, data backup and so forth has never been so simple and well documented.

Key benefits of a Windows-powered NAS include enhanced power, data and server management capabilities. Paired with Thecus’ W series, the possibilities are endless.

Windows Storage Server 2012 R2, Standard Edition

Windows® Storage Server 2012 R2 is the Windows Server® 2012 platform of choice for network-attached storage (NAS) appliances offered by Microsoft partners.

As part of a network-attached storage appliance, Windows Storage Server 2012 R2 can help reduce the storage costs associated with building modern datacenters and private clouds. It enhances the traditional file serving capabilities and extends file based storage for application workloads like Hyper-V, SQL and Internet information Services (IIS). Windows Storage Server 2012 R2 delivers excellent economics for a shared storage solution by leveraging industry standard hardware matched with robust storage capabilities. It delivers continuous availability that is designed to protect from a range of failures and prevent downtime in a scalable and reliable manner.

Microsoft partners offer specialized hardware and additional software components to create NAS appliances based on Windows Storage Server 2012 R2.

Windows Storage Server 2012 R2 based NAS appliances are best suited for you if you are seeking to deploy a dedicated turnkey solution for highly reliable, high-performance shared storage, for example your database needs. If you are a customer who wants to deploy a converged private cloud infrastructure which also includes the ability to run physical or virtual workloads including line-of-business applications, you should consider Windows Server 2012 R2 for your needs.

Thecus Hardware: reducing costs but not quality

Thecus is a company entirely dedicated to storage and network sharing. The main advantage of reaching the high level of excellence is that Thecus helps customers optimize costs and quality. The hardware used for the W series has been tested and approved by media and users all around the world. And you can also benefits from Thecus prices, which give you the best value because of the experience and optimization delivered by our R&D teams.

Thecus products are always delivered using the best quality available on the market. For instance, take high-speed transfers: Thecus NAS appliances are delivered with USB 3.0 (10x faster than USB 2.0).

The following table summarizes the key specs of the W series:

W8900 W12000 W16000
Description 8-bay 2U Rackmount 12-bay 2U Rackmount 16-bay 3U Rackmount
CPU Intel® Core™ i3-2120 Dual Core@3.30GHz Intel® Xeon® E3-1225 Quad Core@3.1GHz Intel® Xeon® E3-1225 Quad Core@3.1GHz
RAM 8GB DDR3 (Up to 32GB)
Storage (for Pre-installed OS) 2.5" SATA
250GB 5400rpm/7200rpm above
Disk interface SATA III & SAS 6G (8/12/16)
USB 2.0 Front x2 Back x4
USB 3.0 Back x2
eSATA Back x1
HDMI Back x1

Specs

1.Hardware Platform
Item Spec
Processor Intel® Core™ i3-2120 3.30GHz Processor
System Memory 8GB DDR3 SDRAM
Storage (for Pre-installed OS) 2.5" SATA
320GB 5400rpm/7200rpm above
LAN Interface (PCI-e) RJ-45x3: Intel 82574L 10/100/1000 BASE-TX Auto MDI/MDI-X
WOL supported
USB Interface USB 2.0 host port x6 (front x2, back x4) (Type A)
USB 3.0 host port x2 (back x2)
LED Indicator Power: (blue)
HDD 1-8 Activity/Fail (green/red)
HDMI Output HDMI port (back x1)
Audio MIC input, Line input, Audio output
SAS/SATA controller (HBA), PCI-e (8-lane) LSI 2008 HBA card supports 6G SAS/SATA (x8)
Disk Interface 8 x SATA for internal
1 x eSATA for external
Power Supply Redundant power supply 350W or more
PCI-e Slots 8-lane (x3), One is used by SAS HBA
4-lane (x1)
1-lane (x1) used by CU30N (USB 3.0)
Thermal/Fan Control Thermal sensor on processor temperature
CPU fan control
System fan control
System Fan Hot swappable (x2)
Buttons Power button (Front, shutdown controlled by user interface)
System reset button
Locator button
RS232 1 (For UPS)
Environment Temperature: 5°C to 40°C
Humidity: 0 ~ 80 % R.H. (Non-condensing)
Chassis 2U Rack mount
Dimensions (HxWxD) 87 x 438 x 595 (mm)
Weight 15.8Kgs

2. Software Functions (Optional, Windows Storage Server 2012 R2 Standard Version)

Windows Storage Server 2012 R2 Standard is a robust and reliable foundation on which to develop, deliver, and manage rich user experiences and applications. Windows Storage Server 2012 R2 Standard provides a secure network infrastructure and reduces costs while increasing technological flexibility and value within your organization.

Key Features
File sharing (SMB & NFS)
DFS-Replication
File Classification Infrastructure (FCI)
File Server Resource Manager (FSRM)
Domain Join
Shared block storage (iSCSI Target + Boot)
OEM Customizable Out of Box Experience
Storage Spaces
Deduplication
BranchCache
Virtualization(Host + 2 VM*)
Clustering
Simplified Cluster Setup
Networking Infra (DHCP, DNS & WINS)
Features
Offloaded Data Transfer (ODX) Yes
Thin Provisioning Yes
Storage Spaces Yes
SMB SMB 3.0
SMB Transparent Failover Yes
Failover Clustering Yes
Cluster-Aware Updating Yes
Online CHKDSK scanning Yes
Scale-out active-active/continuously available file server Yes
SMB Multichannel Yes
SMB Direct (RDMA) Yes
SMB performance DAS equivalence Yes (97% of DAS transaction performance)
Hyper-V VHD files & SQL Server database files on SMB shared folders Yes
Online Backup to Cloud Yes
Hyper-V Replica Yes
NIC teaming Yes
Hyper-V share-nothing live storage migration Yes
Hyper-V Virtual Fiber Channel Yes
ReFS Yes
Native 4K Disk Support Yes
Virtual Disk Format VHDX up to 64 TB
Shared block storage (iSCSI Target + Diskless Boot) Yes
BranchCache Yes
Virtualization (Hyper-V host or guest support) Yes
Simplified Cluster Setup Yes
Networking Infra (Print, DHCP, DNS & WINS) Yes
NFS file sharing NFS v4.1
Deduplication Yes
OEM Customizable Out of Box Experience Yes
DFS-Namespace and Replication Yes
File Classification Infrastructure (FCI) Yes
File Server Resource Manager (FSRM) Yes
Domain Join Yes
Active Directory Lightweight Directory Services Yes
Windows Server Backup Yes
BitLocker Yes

3. New and changed features in Windows Storage Server 2012 R2

Windows Storage Server 2012 R2 makes significant improvements throughout File and Storage Services, including to protocols, data access and replication, continuous availability, scalability, deployment and management.

Feature/functionality Summary
Storage protocols

-iSCSI Target Server –Improvements to iSCSI Target Server include support for VHDx (VHD 2.0) virtual hard disks for capacities of up to 64 TB. iSCSI Target Server also now supports SMI-S, enabling end-to-end provisioning using System Center Virtual Machine Manager.

-SMB – Improvements to the Server Message Block (SMB) protocol include better SMB Direct performance, automatic rebalancing for Cluster Shared Volumes (CSV) on scale-out file servers, shared VHDx files, Hyper-V Live Migration over SMB, SMB bandwidth management, detailed event messages, and more.

Data access and replication

-Work Folders - a new feature that facilitates the BYOD (bring-your-own-device) scenario by enabling users to access work files from their personal computers and devices. Organizations retain centralized control over their data and can specify device policies such as encryption and lock screen password.

-DFS Replication – Enhancements include increases in scalability, the ability to do database cloning and corruption recovery, a Windows PowerShell module, a new WMI provider, faster replication on high bandwidth connections, and recovery tools for conflicts.

Continuous availability

-Failover Clustering - Enhancements include improvements to virtual machine availability, Cluster Shared Volumes (CSV), dynamic cluster quorums, cluster node health detection, deployment, updating and monitoring.

-Hyper-V - Enhancements include shared virtual hard disks, resizing of virtual hard disks while a VM is running, storage quality of service (QoS), improved performance for live migrations, cross-version live migrations, and several more new or improved capabilities.

Scalability improvements

-Storage Spaces – Enhancements include storage tiering, SSD write-back caches for storage spaces, parity storage spaces on failover clusters, dual parity storage spaces, and faster rebuilding of storage spaces after disk failures.

-Data Deduplication - Enhancements include support for Cluster Shared Volumes and deduplication of live Virtual Desktop Infrastructure (VDI) VMs that reside on a file server connected via SMB.

Deployment and management

-OEM Appliance OOBE (out-of-the-box experience) - Enhancements include added support for four-node cluster deployments and a wizard for creating a domain controller within a Hyper-V VM that can be used to deploy a turnkey cluster-in-a-box.

-Storage Management API – Enhancements include an improved Storage Management API enables 10x faster enumerations, added cluster-awareness, and remote management for Storage Spaces new features.

Package Contents

Accessory Bag(with key) Ethernet Cable Power Cord WSS 2012 Recovery CD
QIG Warranty Card HDD Compatibility List Card Sliding Shelves
